Mobile steam boiler room
Complete steam boiler house in a 20 ft or 40 ft ISO container, factory-tested and ready to connect
TSB Energy
- ≤ 6000 kg/h
- ≤ 16 bar
- ISO 20 ft / 40 ft
The mobile steam boiler room is a complete process heating plant that packs a steam boiler and its auxiliaries into a 20 ft or 40 ft ISO general-purpose container. It is run and put through all process tests at the factory, so on site only the power supply and the steam consumers need to be connected. Firing diesel, heavy fuel oil or LPG, it delivers up to 6000 kg/h of steam (up to 5 MW) at up to 16 bar and starts producing steam within 5–10 minutes.
Besides the boiler, the container houses the burner, the feedwater and water treatment equipment, a fuel tank and the electrical panel. At 8 bar the boiler reaches 90–92 % efficiency without an economiser and 94–96 % with one; optional aluminium turbulators in the smoke tubes add 2 % combustion efficiency. Design and manufacture are based on EN 12953, PED 2014/68/EU, TRD and ASME VIII Div. 1.

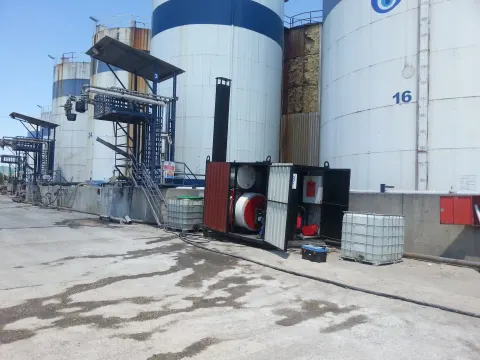

It suits plants whose production is spread over a large site and where steam is used partly, at particular points: hotels, laundries, textile and dry-cleaning shops, food and beverage production, chemical and paint plants, concrete curing and aerated concrete manufacturing among them. The unit can run unattended for 24 to 720 hours, and a PLC with Modbus, Modbus TCP and Profinet can connect it to SCADA systems for remote monitoring.
Mobile steam boiler room
- Compact, transportable unit including burner, feedwater preparation, fuel tank and control panel
- Run and tested at the factory, so it arrives fully ready for installation
- Small footprint; steam within 5–10 minutes
- Automatic, safe operation with successive safety systems
- 24 to 720 hours of unattended operation keeps running costs low
- At least 2 % less fuel than standard boilers
- With clean combustion, NOx below 70 mg/Nm³ on gas and below 150 mg/Nm³ on oil
Mobile steam boiler room
Container equipment

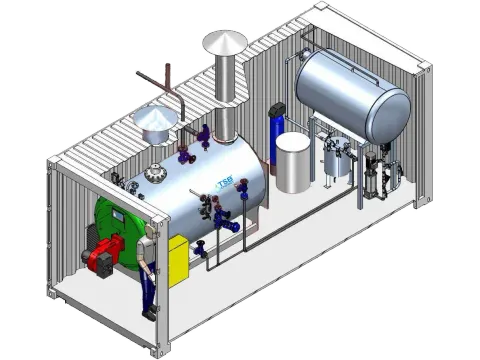

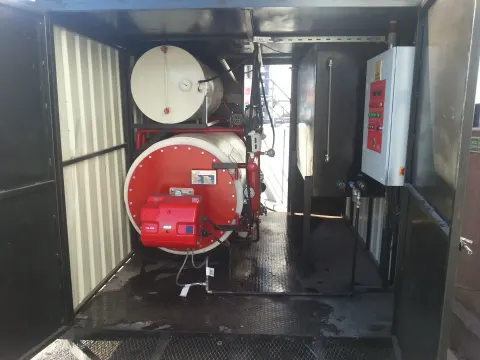

Alongside the boiler, the container houses the burner, the electrical panel, a fuel tank, a condensate tank, a feedwater pump, a water filter and an automatic softener. The container can be fitted with ventilation louvres, lighting and frost-protection heating.
Key specifications
| Specification | Mobile Steam Boiler Room |
|---|---|
| Steam output | ≤ 6000 kg/h |
| Thermal capacity | ≤ 5 MW |
| Operating pressure | ≤ 16 bar |
| Time to steam | 5–10 min |
| Efficiency | At 8 bar: 90–92 % (without economiser) · 94–96 % (with economiser) |
| Fuel types | LPG, diesel, heavy fuel oil |
| Container size | ISO 20 ft / 40 ft |
| Unattended operation | 24–720 h |
| NOx emissions | Clean combustion: < 70 mg/Nm³ (gas firing) · < 150 mg/Nm³ (oil firing) |
Approvals and standards
- EN 12953 — shell boilers (design and manufacture)
- PED 2014/68/EU — Pressure Equipment Directive (design and manufacture)
- TRD — German technical rules for steam boilers
- ASME VIII Div. 1 — pressure vessels (design and manufacture)
Accessories
- Aluminium turbulators for the smoke tubes (2 % extra combustion efficiency)
- SCADA integration via a PLC supporting Modbus, Modbus TCP and Profinet
