XEC24 high-energy ignition unit
Heavy-duty wall-mounted unit with 24.5 J per spark at 6 sparks per second for direct ignition of diesel and heavy fuel oil
TESI · XEC24
- 24.5 J · 6 Hz
- 1400 V
- IP66
- -20 … +60 °C

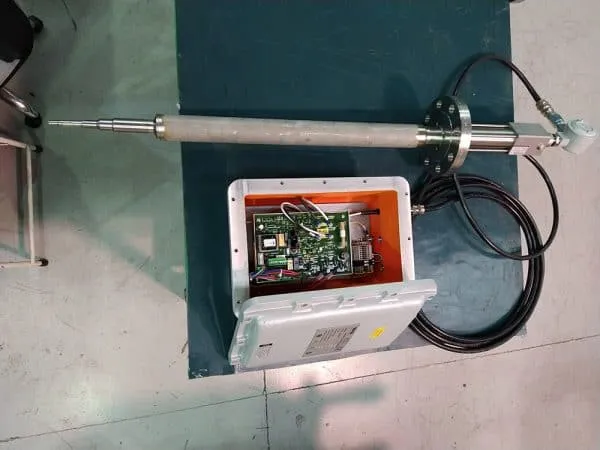

XEC24 belongs to TESI's heavy-duty series of wall-mounted high-energy power units, which are considerably more powerful than the standard units and light oil and gas burners directly, diesel and heavy fuel oil included. Together with a high-energy ignition rod with an exchangeable spark tip and a high-voltage connecting cable, the power unit in its wall-mounting box forms a complete system. The rod is rigid as standard; a flexible design can be made for tilting tangential firing.
Each spark delivers 24.5 J (±10 %), the highest spark energy among the four XEC units in this catalogue (XEC10: 10 J, XEC15: 15 J, XEC18H: 18 J). Output voltage is 1400 V (±10 %) and the spark rate averages 6 per second, adjustable on request. The duty cycle, stated for 60 °C, allows up to 8 minutes of sparking at 6 sparks/s followed by a pause of at least 16 minutes, with no more than 3 cycles in a row.
The unit is fed with 115 or 230 V AC at 50 Hz (60 Hz on request) and draws at most 10 A, about 3.15 A RMS at 6 sparks/s, and 550 W. The standard operating range is -20…+60 °C, with -30…+60 °C on request as a special execution; protection is IP66, other ratings on request. High-energy ignition ignores moisture, liquids and deposits on the electrodes, needs no maintenance and brings no electric shock risk.
XEC24 high-energy ignition unit
- 24.5 J per spark at an average of 6 sparks per second, adjustable on request
- Lights diesel and heavy fuel oil directly; also suited to gas and light fuel oil
- Up to 8 minutes of sparking followed by at least 16 minutes of pause (60 °C)
- Can ignite the main burner directly in place of an air/gas pilot torch
- Unaffected by moisture, liquids and electrode deposits (100 % waterproof)
- Maintenance-free, with no electric shock risk
- IP66; -20…+60 °C, or down to -30 °C as a special execution
Key specifications
| Specification | XEC24 |
|---|---|
| Ignition energy | 24.5 J ± 10 % |
| Spark rate | 6 Hz (average, adjustable on request) |
| Output voltage | 1400 V ± 10 % |
| Supply voltage | 115 / 230 V AC, 50 Hz (60 Hz on request) |
| Input current | ≤ 10 A · ≈ 3.15 A RMS (6 Hz) |
| Power consumption | 550 W (6 Hz) |
| Duty cycle | ≤ 8 min sparking / ≥ 16 min pause, ≤ 3 cycles in a row (6 Hz, 60 °C) |
| Ambient temperature | -20 … +60 °C (standard version) · -30 … +60 °C (special execution, on request) |
| Degree of protection | IP66 (others on request) |
| Fuels | Gas · light fuel oil · diesel · heavy fuel oil |
