XEC18H high-energy ignition unit
Standard high-energy power pack, 18 J per spark at 3000 V, for all gases and light fuel oil in boilers, furnaces and gas turbines
TESI · XEC18H
- 18 J · 2 Hz
- 3000 V
- Ex d · Ex 1/2 (EJB, GUB)
- IP66

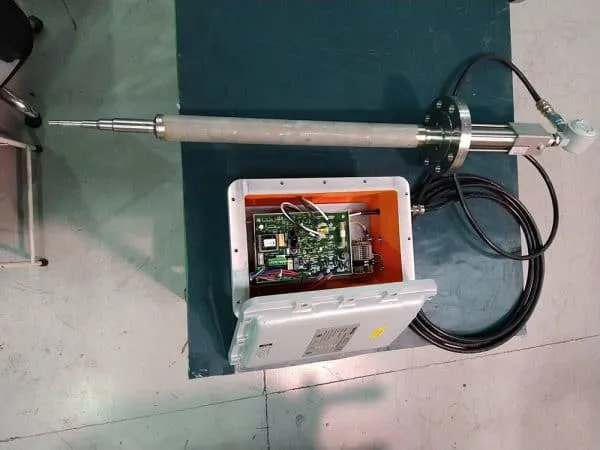

XEC18H is TESI's standard high-energy power pack, used to light every type of gas and light fuel oil in boilers, furnaces and gas turbines. High-energy ignition can take the place of air/gas pilot torches; it is not affected by moisture, liquids or the dirt that combustion leaves on the electrodes, needs no maintenance and poses no electric shock risk.
XEC18H delivers 18 J (±10 %) per spark at an average of 2 sparks per second, with an output voltage of 3000 V (±10 %), higher than the 1400 V of the heavy-duty units XEC10, XEC15 and XEC24. On 115 V AC it draws 2.5 A RMS (max. 9.5 A) and 160 W (±5 %); on 230 V AC, 3.6 A RMS (max. 15.5 A) and 320 W (±5 %). Mains frequency is 50 Hz, with 60 Hz on request. The duty cycle, stated for 60 °C, is 33 %: 20 s of sparking and 40 s of pause, up to 3 times in a row.
The standard operating range is -5…+60 °C, while a special execution works at -30…+60 °C. Protection is IP66. For fixed and portable systems the unit comes in three housings: the SA housing for safe areas (IP66), and the flameproof EJB housing (II 2G Ex d IIB+H2, IP66) and GUB housing (II 2G Ex d IIC, IP66) for Ex zones 1 and 2.
XEC18H high-energy ignition unit
- 18 J per spark with a 3000 V output voltage
- For every type of gas and light fuel oil in boilers, furnaces and gas turbines
- 160 W at 115 V, 320 W at 230 V
- Flameproof EJB (IIB+H2) or GUB (IIC) housing for use in Ex zones 1 and 2
- IP66 SA housing for safe areas; fixed or portable system
- Unaffected by moisture, liquids and electrode dirt (100 % waterproof); maintenance-free
- Direct ignition in place of an air/gas pilot torch, with no electric shock risk
Key specifications
| Specification | XEC18H |
|---|---|
| Ignition energy | 18 J ± 10 % |
| Spark rate | 2 Hz (average) |
| Output voltage | 3000 V ± 10 % |
| Supply voltage | 115 / 230 V AC, 50 Hz (60 Hz on request) |
| Input current | 2.5 A RMS / ≤ 9.5 A (115 V) · 3.6 A RMS / ≤ 15.5 A (230 V) |
| Power consumption | 160 W ± 5 % (115 V) · 320 W ± 5 % (230 V) |
| Duty cycle | 33 % — 20 s sparking / 40 s pause, ≤ 3 cycles in a row (60 °C) |
| Ambient temperature | -5 … +60 °C (standard version) · -30 … +60 °C (special execution) |
| Degree of protection | IP66 (others on request) |
| Fuels | All types of gas · light fuel oil |
Approvals and standards
- ATEX II 2G Ex d IIB+H2, IP66 — EJB housing (Ex zones 1 and 2)
- ATEX II 2G Ex d IIC, IP66 — GUB housing (Ex zones 1 and 2)
Accessories
- EJB flameproof housing: II 2G Ex d IIB+H2, IP66 (Ex zones 1 and 2); fixed or portable system
- GUB flameproof housing: II 2G Ex d IIC, IP66 (Ex zones 1 and 2); fixed or portable system
- SA housing for safe areas, IP66; fixed or portable system
