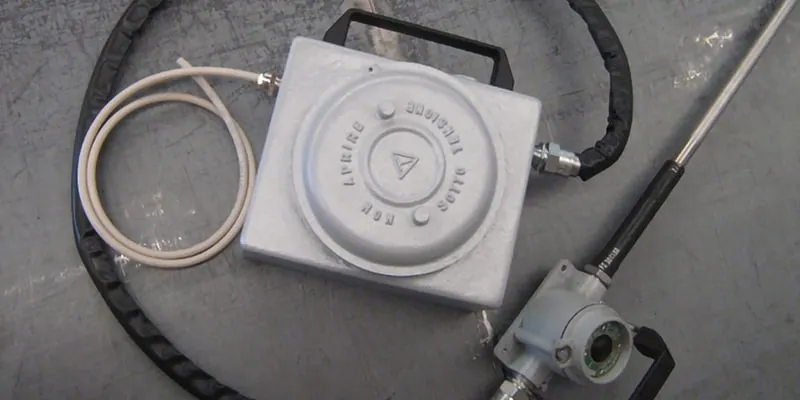

XE 18 PB 06 portable high-energy igniter

Name: XE 18 PB 06 portable high-energy igniter
Brand: TESI

Battery-powered portable high-energy igniter for safe areas, delivering 18 J per spark without a mains connection

Ignition systems

TESI · XE 18 PB 06

18 J · ≈ 4 Hz
For safe areas
Battery 12 V · 7.2 Ah
IP65

XE 18 PB 06 is TESI's portable high-energy igniter for safe areas. It is meant for lighting burners that have no pilot torch or electrode assembly of their own, for standing in when an igniter has failed and for emergency ignition. No mains connection is needed while it works: a built-in rechargeable 12 V, 7.2 Ah battery powers it, and an automatic charger sits inside the housing.

Each spark carries 18 J, at roughly 4 sparks per second. The duty cycle is 100 %, with 30 minutes suggested as the longest continuous sparking time, and one charge lasts for up to 41,900 sparks at 50 °C with the standard duty cycle. The aluminium alloy housing, rated IP65, measures 344 × 272 × 110 mm, weighs 5.7 kg and works at -20…+50 °C. Its sturdy build and low input voltage let the operator handle the rod during maintenance without breaking insulators or risking an electric shock.

With frequent use, the charging circuit may stay connected to the 115/230 V AC mains in non-classified areas, provided the ½" gas vent cap is left fully open; once the battery is full, the charger switches to a suitable holding current. With the cap and charging cable back in place, the igniter is always ready. If it will be idle for a long time or put into storage, the battery should be disconnected from the electronics.

Request a quote for this product Technical data sheet

Benefits

XE 18 PB 06 portable high-energy igniter

No mains connection needed: built-in rechargeable 12 V, 7.2 Ah battery
18 J per spark at about 4 sparks per second
Up to 41,900 sparks per charge (50 °C, standard duty cycle)
Automatic charger built into the housing, 115/230 V AC input
Low input voltage: no insulator breakage or electric shock risk during maintenance
Suitable for lighting every kind of fuel, even in demanding applications
IP65 aluminium alloy housing, 5.7 kg

Modules

XE 18 PB 06 portable high-energy igniter

Igniter rod

Stainless steel rod rated for 760 °C in operation (1000 °C maximum), 0.8 kg per metre, length to specification. Easily exchanged high-energy tip, 17 mm as standard or 12 or 14 mm on request. Rubber handle, 150 mm as standard, angled at 90° on request.

Connection cable

Flexible stainless steel armoured cable with bent or straight fittings; -60…+180 °C (200 °C for short periods); 0.4 kg per metre; length to specification.

Built-in charger

Automatic charger built into the housing: input 115/230 V AC, 50/60 Hz; charging output 13.5 V DC. Once the battery is full it supplies a suitable holding current.

XE 18 PB 06

Key specifications

Specification	XE 18 PB 06
Ignition energy	18 J
Spark rate	≈ 4 Hz
Supply voltage	12 V DC (internal rechargeable battery, 7.2 Ah)
Battery runtime	≤ 41 900 sparks (50 °C, standard duty cycle)
Charger input	115 / 230 V AC, 50/60 Hz
Duty cycle	100 % (suggested max. continuous sparking time: 30 min)
Degree of protection	IP65
Ambient temperature	-20 … +50 °C
Dimensions	344 × 272 × 110 mm
Weight	5.7 kg (housing)
