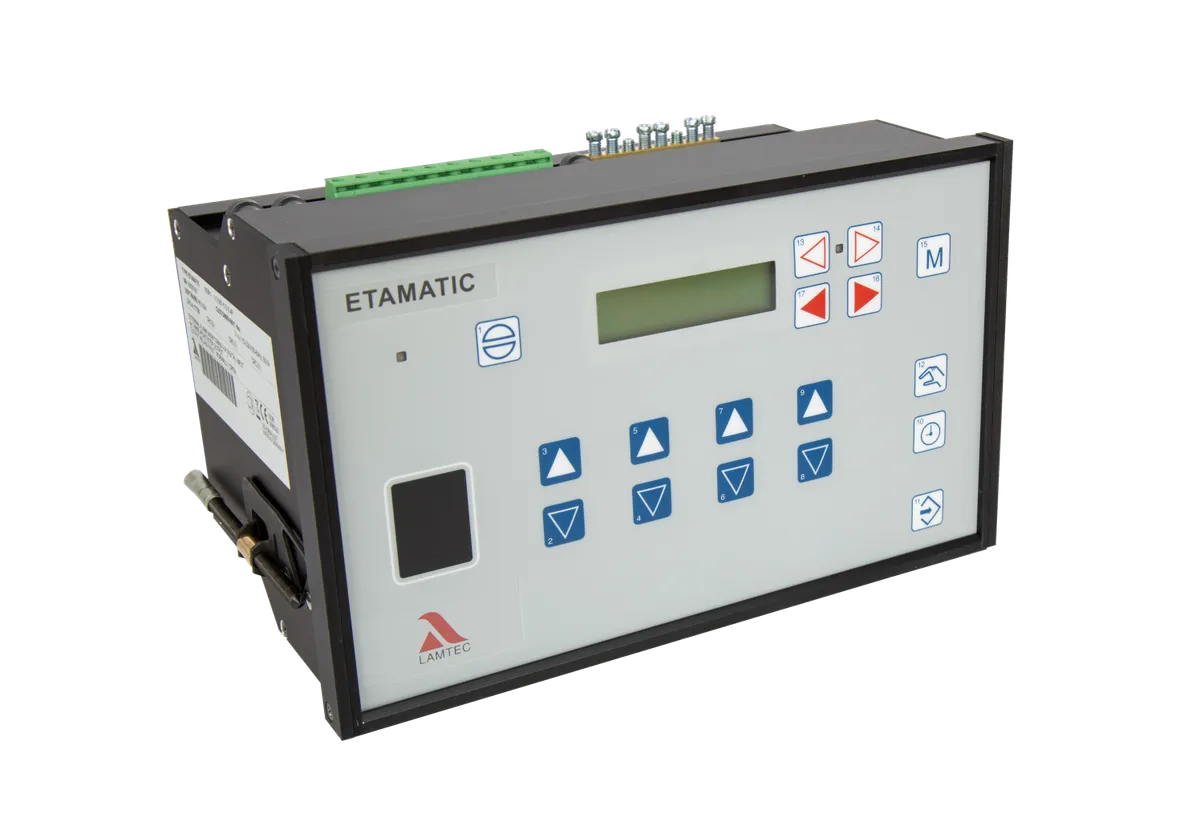

ETAMATIC compact burner control unit
Compact unit that combines electronic fuel-air ratio control and a burner sequencer in one housing
LAMTEC · ETAMATIC · ETAMATIC S
- ≤ 4 actuators
- SIL3 · CE
- Gas · Oil
ETAMATIC brings the functions needed to run a burner together in one compact housing. It pairs electronic fuel-air ratio control with a burner sequencer; the valve leakage test is built in, and load control, CO/H₂ control and flame monitoring are available in the same device. Safety chains, switches and sensors wire straight to its digital inputs, which saves extra relays and cabling. The complete control can stay on the burner while bus networking and remote operation from a PC remain available.
Ratio control drives up to 4 actuators: the output stage is either four three-point step channels, or three such channels plus one continuous output, for example for speed control. On request, the internal load controller takes over, working with up to two switchable setpoints for temperature or pressure as a fixed-value or weather-compensated controller. Whether the burner starts with or without a pilot burner is chosen independently for oil and for gas, and start-up without pre-purge is possible to EN 676.
The front operating panel gives full access to all burner parameters, and the access levels in its menu are protected by passwords. Through the RS232 PC interface at the rear, the unit can be run remotely and its data archived. Every ETAMATIC has one LSB interface; PROFIBUS DP, Modbus TCP, Modbus and INTERBUS-S connections are optional. Counters record burner starts and operating hours in total and for each fuel. ETAMATIC has been recertified to DIN EN 298:2024-03.
ETAMATIC compact burner control unit
- Fail-safe electronic fuel-air ratio control for up to 4 actuators
- Built-in valve leakage test, run either ahead of ignition or once the burner has shut down
- Internal load controller with up to two setpoints for temperature or pressure, e.g. for night setback or weather compensation
- CO/H₂ control with KS1D and LT3-F measuring devices, shifting the curves to offset changes in temperature, humidity, pressure and fuel quality
- Correction by an external current signal for calorific value or temperature compensation
- Optional integrated flame monitoring with direct connection of FFS07 and FFS08 sensors
- Graphical set-up on a PC, with backup and restore of the configuration and curve data
- SIL3 to DIN EN 61508 and EU type examination certificates for pressure equipment and gas appliances
ETAMATIC compact burner control unit
LSB I/O modules
Analogue and digital input/output modules connected to the LAMTEC SYSTEM BUS. Additional bus signal inputs and outputs are assigned through the LSB interface of ETAMATIC, with 12 analogue inputs available on the LSB side. LSB links LAMTEC devices with little wiring, and DIN-rail fieldbus modules are driven over it using a settable address.
Key specifications
| Specification | ETAMATIC |
|---|---|
| Fuel-air ratio channels | ≤ 4 |
| Fuels | Gas · Oil |
| Flame detection | FFS07 / FFS08 (optional) · digital input |
| Interfaces | LSB · PROFIBUS DP, Modbus TCP, Modbus, INTERBUS-S (optional) |
| Safety integrity level | SIL3 |
Approvals and standards
- CE declaration of conformity (2014/35/EU, 2014/30/EU, 2014/68/EU, (EU) 2016/426)
- EU type examination certificate — 2014/68/EU, Module B (pressure equipment)
- EU type examination certificate — (EU) 2016/426 (gas appliances)
- SIL3 — DIN EN 61508
- DIN EN 298
- DIN EN 1643
- DIN EN 230
- DIN EN 60730-2-5
- DIN EN 12067-2
- DIN EN 13611
- DIN EN 50156-1
Accessories
- DIN-rail fieldbus modules for PROFIBUS DP, Modbus TCP, Modbus or INTERBUS-S connections
- GUI307 colour touch screen: 7-inch, 800 × 400 pixels, IP65 at the front
- GUI310 colour touch screen: 10.1-inch, 1280 × 800 pixels, IP65 at the front
- GUI315 colour touch screen: 15.6-inch, 1366 × 768 pixels, IP65 at the front
- Speed sensors: 663R8101 two-wire NAMUR type (2 mm switching distance) and 663R8103 three-wire inductive proximity switch (4 mm)
- PC Remote Software: remote operation from a laptop over the RS232 interface, with archiving of configuration and curve data
