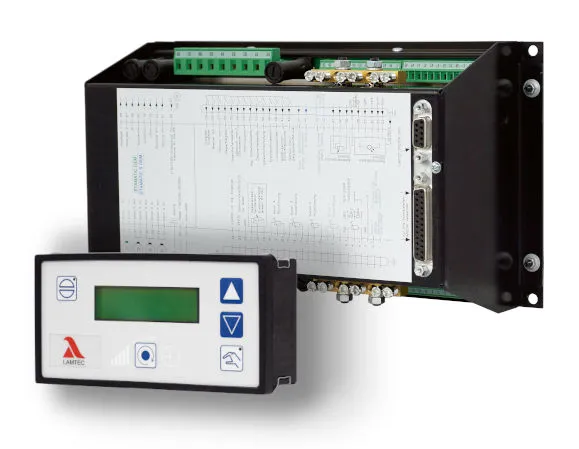

ETAMATIC OEM burner control unit
Control unit without a front panel, designed to be mounted on the burner as a standard part of monoblock burners
LAMTEC · ETAMATIC OEM · ETAMATIC S OEM
- ≤ 4 actuators
- SIL3 · CE
- Burner-mounted
ETAMATIC OEM joins electronic fuel-air ratio control for up to four actuators with an electronic burner sequencer in one device. It is designed to sit on the burner: safety chains, sensors and switches connect to it directly, and the short cable runs cut the need for extra relays and wiring. This makes it especially suited as a standard component of monoblock burners.
Its actuator outputs are either four three-point step channels, or three such channels and one continuous output for speed control. Start with or without a pilot burner is selected separately for oil and gas, and on gas the burner can start without pre-purge to EN 676. Built-in O₂ trim shifts the fuel-air curves during operation to counter disturbances; a CO/O₂ controller is optional. On request, the unit also takes over load control, and this includes weather-dependent setpoint shift and start-up control.
ETAMATIC OEM has no front panel. It is operated with the optional PC software, a hand-held programming unit featuring Startup Manager, or a customer display on the LSB. Every unit has an LSB connection; PROFIBUS DP, Modbus TCP, Modbus and INTERBUS-S connections are optional. Running time and number of starts are counted separately for gas and oil. The unit meets the relevant European standards for continuous operation and has been recertified to DIN EN 298:2024-03.
ETAMATIC OEM burner control unit
- Fail-safe electronic fuel-air ratio control for up to 4 actuators
- Designed for burner mounting: short cable runs and fewer relays lower the risk of errors during commissioning
- Built-in valve leakage test, run either ahead of ignition or once the burner has shut down
- Integrated O₂ trim; the optional CO/O₂ controller works with LT1/LT2 analysers over LSB
- Internal load controller and correction by an external current signal for calorific value or temperature
- Optional integrated flame monitoring with direct connection of FFS07 and FFS08 sensors
- Messages and fault reports appear as plain text in the user's language on the customer display
- SIL3 to DIN EN 61508; recertified to DIN EN 298:2024-03
ETAMATIC OEM burner control unit
LSB I/O modules
Add-on modules for the LAMTEC SYSTEM BUS: two output module types for 4 analogue signals, 0…10 V DC or 0…20 mA; a 4-channel analogue input module for 0…10 V DC; a module for 4 floating digital outputs; and a 4-channel digital input module for 24 V DC. An additional power supply for the modules is available. LSB links LAMTEC devices with little wiring.
Key specifications
| Specification | ETAMATIC OEM |
|---|---|
| Fuel-air ratio channels | ≤ 4 |
| Fuels | Gas · Oil |
| Flame detection | FFS07 / FFS08 (optional) · digital input |
| Interfaces | LSB · PROFIBUS DP, Modbus TCP, Modbus, INTERBUS-S (optional) |
| Safety integrity level | SIL3 |
Approvals and standards
- CE declaration of conformity (2014/35/EU, 2014/30/EU, 2014/68/EU, 2009/142/EC)
- EU type examination certificate — 2014/68/EU, Module B (pressure equipment)
- EC type examination certificate — 2009/142/EC (gas appliances)
- SIL3 — DIN EN 61508
- DIN EN 298
- DIN EN 1643
- DIN EN 230
- DIN EN 60730-2-5
- DIN EN 12067-2
- DIN EN 13611
- DIN EN 50156-1
Accessories
- Hand-held programming unit featuring Startup Manager, used to operate, program and commission the unit step by step; set with 4 m cable
- Customer display: separate, detachable screen on the LSB that shows basic information and simplifies configuration
- Graphical customer display for panel mounting: 8.4-inch touch-screen panel PC with fixing set
- Fieldbus modules for PROFIBUS DP, Modbus RTU, Ethernet TCP/IP or INTERBUS, each with a 2 m LSB connecting cable
- Speed sensors: 663R8101 two-wire NAMUR type (2 mm switching distance) and 663R8103 three-wire inductive proximity switch (4 mm)
- PC software (Remote Software): remote operation from a laptop over RS232, with archiving of configuration and curve data
More products in this group
